Product Summary
The LFXP3C-3QN208C is an FPGA device combines logic gates, embedded memory and high performance I/Os in a single architecture that is both non-volatile and infinitely reconfigurable to support cost-effective system designs. The re-programmable non-volatile technology used in the LatticeXP family is the next generation ispXP technology. With this technology, expensive external configuration memories are not required and designs are secured from unauthorized read-back. In addition, instant-on capability of the LFXP3C-3QN208C allows for easy interfacing in many applications.
Parametrics
LFXP3C-3QN208C absolute maximum ratings: (1)Supply Voltage VCC: -0.5 to 3.75V; (2)Supply Voltage VCCP: -0.5 to 3.75V; (3)Supply Voltage VCCAUX: -0.5 to 3.75V; (4)Supply Voltage VCCJ: -0.5 to 3.75V; (5)Output Supply Voltage VCCIO: -0.5 to 3.75V; (6)I/O Tristate Voltage Applied5: -0.5 to 3.75V; (7)Dedicated Input Voltage Applied5: -0.5 to 4.25V; (8)Storage Temperature (Ambient): -65 to 150℃; (9)Junction Temp. (Tj): +125℃.
Features
LFXP3C-3QN208C features: (1)Instant-on-powers up in microseconds; (2)No external configuration memory; (3)Excellent design security, no bit stream to intercept; (4)Reconfigure SRAM based logic in milliseconds; (5)SRAM and non-volatile memory programmable through system configuration and JTAG ports; (6)Allows up to 1000x static current reduction; (7)In-field logic update while system operates; (8)3.1K to 19.7K LUT4s; (9)62 to 340 I/Os; (10)Density migration supported; (11)54 Kbits to 396 Kbits sysMEM Embedded Block RAM; (12)Up to 79 Kbits distributed RAM; (13)Flexible memory resources: Distributed and block memory.

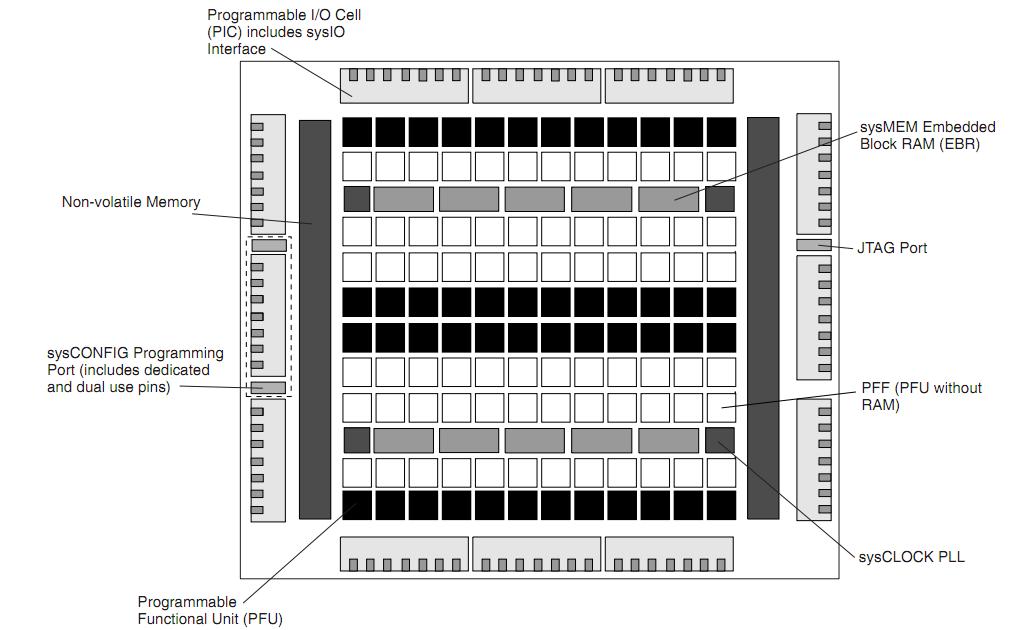

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LFXP3C-3QN208C |
Lattice |
FPGA - Field Programmable Gate Array 3.1K LUTS 136 I/O |
Data Sheet |
|
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
 |
LFXP10C-3F256IES |
Lattice |
FPGA - Field Programmable Gate Array |
Data Sheet |
Negotiable |
|
||||||||||
|
LFXP10C-3F388C |
Lattice |
FPGA - Field Programmable Gate Array 9.7K LUTs 244 I/O 1.8/2.5/3.3V -3 Spd |
Data Sheet |
|
|
||||||||||
|
LFXP10C-3F388I |
Lattice |
FPGA - Field Programmable Gate Array 9.7K LUTs 244 IO 1.8 /2.5/3.3V -3 Spd I |
Data Sheet |
|
|
||||||||||
|
LFXP10C-3F388IES |
Lattice |
FPGA - Field Programmable Gate Array |
Data Sheet |
Negotiable |
|
||||||||||
|
LFXP10C-3FN256I |
Lattice |
FPGA - Field Programmable Gate Array 9.7K LUTs 188 IO 1.8 /2.5/3.3V -3 Spd I |
Data Sheet |
|
|
||||||||||
|
LFXP10C-3FN388I |
Lattice |
FPGA - Field Programmable Gate Array 9.7K LUTs 244 IO 1.8 /2.5/3.3V -3 Spd I |
Data Sheet |
|
|
||||||||||
