Product Summary
The LPC2136FBD64/01 is a microcontroller. The LPC2136FBD64/01 is based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, that combines the microcontroller with 32 kB, 64 kB, 128 kB, 256 kB and 512 kB of embedded high-speed flash memory. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at maximum clock rate. For critical code size applications, the LPC2136FBD64/01 alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty.
Parametrics
LPC2136FBD64/01 absolute maximum ratings: (1)VDD, supply voltage (core and external rail): -0.5 to +3.6 V; (2)VDDA, analog 3.3 V pad supply voltage: -0.5 to +4.6 V; (3)Vi(VBAT), input voltage on pin VBAT for the RTC: -0.5 to +4.6 V; (4)Vi(VREF), input voltage on pin VREF: -0.5 to +4.6 V; (5)VIA, analog input voltage on ADC related pins: -0.5 to +5.1 V; (6)VI, input voltage : -0.5 to +6.0 V; (7)IDD, supply current per supply pin: 100 mA max; (8)ISS, ground current per ground pin: 100 mA max; (9)Tstg, storage temperature: -40 to +125℃; (10)Ptot(pack), total power dissipation (per package): 1.5 W max.
Features
LPC2136FBD64/01 features: (1)16/32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 package; (2)8/16/32 kB of on-chip static RAM and 32/64/128/256/512 kB of on-chip Flash program memory. 128 bit wide interface/accelerator enables high speed 60 MHz operation; (3)In-System/In-Application Programming (ISP/IAP) via on-chip boot-loader software.Single Flash sector or full chip erase in 400 ms and programming of 256 bytes in 1 ms; (4)EmbeddedICE RT and Embedded Trace interfaces offer real-time debugging with the on-chip RealMonitor software and high speed tracing of instruction execution; (5)One (LPC2131/32) or two (LPC2134/36/38) 8 channel 10-bit A/D converters provides a total of up to 16 analog inputs, with conversion times as low as 2.44 ms per channel.

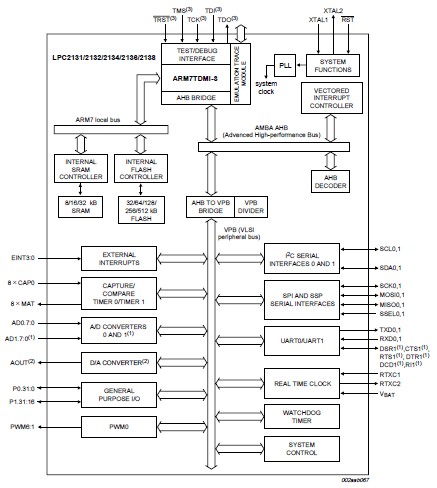

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LPC2136FBD64/01,15 |
NXP Semiconductors |
ARM Microcontrollers (MCU) ARM7 256KF/32KR/ADC |
Data Sheet |
|
|
||||||||||||
