Product Summary

The VW2010 is a real-time MPEG-1, -2 and -4 audio/video/system CODEC chip(simultaneous compression/ decompression, or encode/decode) that fully complies with MPEG andH.263 base line standard. The VW2010 accepts uncompressed ITUR.BT-656 video and I2S audio, compresses the video into MPEG-1, -2, -4 or H.263 format, compresses the audio into MPEG-1, MPEG-2*, MP3*,AAC *or AC-3* audio format, and outputs them as transport stream for network applications or program streams for storage applications. The applications of the VW2010 are Camcorders and network cameras, Personal video recorder, Set-top boxes, PC capture devices for video capture, content creation, and display, VCD, Super-VCD and DVD format for publishing.

Features

VW2010 features: (1)Uses 8 MB of external SDRAM; (2)Uses 32-bit SDRAM interface; (3)Proprietary motion estimation algorithm and rate control algorithm; (4)MPEG-4 compression reduces storage requirement; (5)MPEG-1, -2, -4 and H.263 with A/V/S layer fully integrated on a single silicon; (6)Superior video quality: Efficient rate control algorithm results in a superior video quality; (7)Programmable frame rates, bit rates, resolution and low delay mode; (8)Programmable GOP structure; (9)Transcoding and transrating among MPEG-1, -2, - 4 and H.263 base line; (10)MPEG-1, -2, -4 full-D1 interlaced encoder/decoder; (11)Low latency support; (12)MPEG-4 short header support (H.263 baseline support); (13)Transcoding; (14)Transrating.

Diagrams

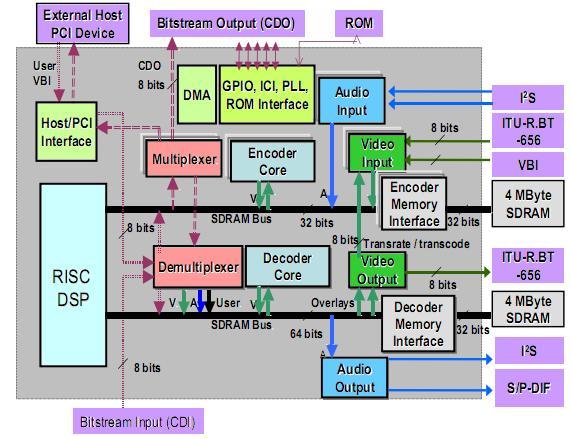

VW2010 circuit diagram
