Product Summary
The 6N137 is a single-channel optocoupler. It consists of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photodetector logic gate with a strobable output. This output of 6N137 features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40℃ to +85℃. A maximum input signal of 5 mA will provide a minimum output sink current of 13mA (fan out of 8). The applications of the 6N137 include Ground loop elimination, LSTTL to TTL, LSTTL or 5-volt CMOS, Line receiver, data transmission, Data multiplexing, Switching power supplies, Pulse transformer replacement, Computer-peripheral interface.
Parametrics
6N137 absolute maximum ratings: (1)Storage Temperature: -55 to +125 ℃; (2)Operating Temperature: -40 to +85 ℃; (3)Lead Solder Temperature: 260 for 10 sec ℃; (4)DC/Average Forward: 50 mA at Single Channel; (5)Input Current: 30 mA at Dual Channel (Each Channel); (6)Enable Input Voltage Not to exceed VCC by more than 500 mV: 5.5 V at Single Channel; (7)Reverse Input Voltage: 5.0 V at Each Channel; (8)Power Dissipation: 100 mW at Single Channel; (9)Dual Channel (Each Channel): 45 mW.
Features
6N137 features: (1)Very high speed-10 MBit/s; (2)Superior CMR-10 kV/μs; (3)Double working voltage-480V; (4)Fan-out of 8 over -40℃ to +85℃; (5)Logic gate output; (6)Strobable output; (7)Wired OR-open collector; (8)U.L. recognized.

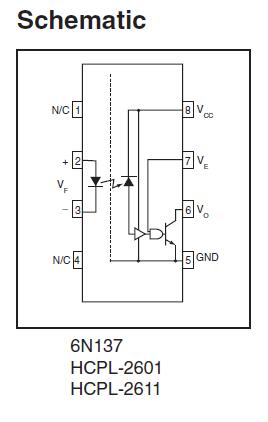

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 6N137WV |
Fairchild Semiconductor |
High Speed Optocouplers 10Mbit/s Optocoupler 1Ch HS Logic Gate |
Data Sheet |
|
|
||||||||||||
 |
6N137S |
Fairchild Semiconductor |
High Speed Optocouplers SO-8 HS LOGIC GATE |
Data Sheet |
|
|
||||||||||||
|
6N137SD |
Fairchild Semiconductor |
High Speed Optocouplers 10Mbit/s Optocoupler 1Ch HS Logic Gate |
Data Sheet |
|
|
||||||||||||
 |
6N137-560E |
Avago Technologies |
High Speed Optocouplers 10 Mb/s 3750Vrms |
Data Sheet |
|
|
||||||||||||
|
6N137SM |
Fairchild Semiconductor |
High Speed Optocouplers 8 PW DIP HIGH SPEED LOGIC GATE OPTOCOUP |
Data Sheet |
|
|
||||||||||||
 |
6N137-X007T |
Vishay Semiconductors |
High Speed Optocouplers 10Mbd High-Speed Single CTR>300% |
Data Sheet |
|
|
||||||||||||
|
6N137-360E |
Avago Technologies |
High Speed Optocouplers 10 Mb/s 3750Vrms |
Data Sheet |
|
|
||||||||||||
|
6N137-300E |
Avago Technologies |
High Speed Optocouplers 10 Mb/s 3750Vrms |
Data Sheet |
|
|
||||||||||||
