Product Summary

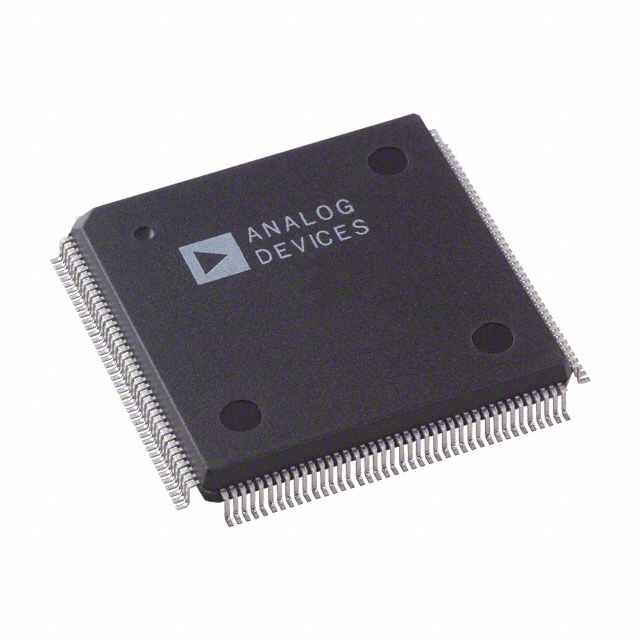

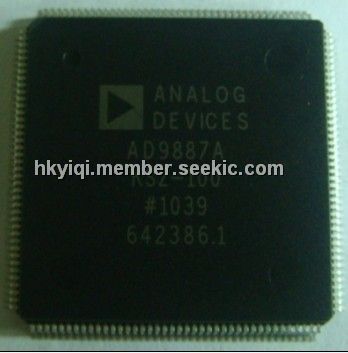

The AD9887AKSZ-100 offers designers the flexibility of a dual analog and digital interface for flat panel displays (FPDs) on a single chip. Both interfaces are optimized for excellent image quality supporting display resolutions up to SXGA (1280 × 1024 at 75 Hz). Either the analog or the digital interface can be selected by the user.
Parametrics
AD9887AKSZ-100 absolute maximum ratings: (1)VD: 3.6V; (2)VDD: 3.6V; (3)Analog Inputs: VD to 0.0V; (4)VREF IN: VD to 0.0V; (5)Digital Inputs: 5V to 0.0V; (6)Digital Output Current: 20mA; (7)Operating Temperature: –25℃ to +85℃; (8)Storage Temperature: –65℃ to +150℃; (9)Maximum Junction Temperature: 150℃; (10)Maximum Case Temperature: 150℃.
Features
AD9887AKSZ-100 features: (1)Analog Interface; (2)140 MSPS Maximum Conversion Rate; (3)330 MHz Analog Bandwidth; (4)0.5 V to 1.0 V Analog Input Range; (5)500 ps p-p PLL Clock Jitter at 140 MSPS; (6)3.3 V Power Supply; (7)Full Sync Processing; (8)Midscale Clamp; (9)4:2:2 Output Format Mode; (10)Digital (DVI 1.0 Compatible) Interface; (11)112 MHz Operation (1 Pixel/Clock Mode); (12)High Skew Tolerance of One Full Input Clock.

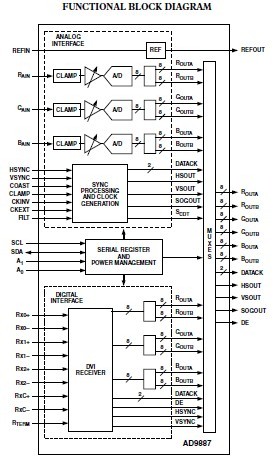

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9887AKSZ-100 |
|
IC INTRFACE ANALOG/DVI 160-MQFP |
Data Sheet |
|
|
||||||
