Product Summary

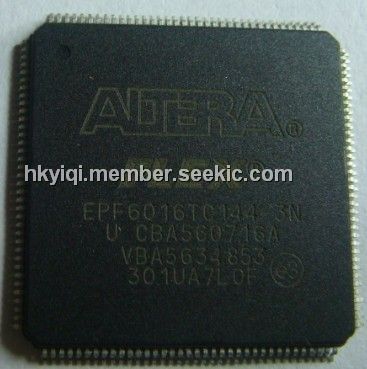

The EPF6016TC144-3N programmable logic device (PLD) family provide a low-cost alternative to high-volume gate array designs. The EPF6016TC144-3N is based on the OptiFLEX architecture, which minimizes die size while maintaining high performance and routability. The EPF6016TC144-3N is reprogrammable, and the EPF6016TC144-3N is 100% tested prior to shipment.
Parametrics
EPF6016TC144-3N absolute maximum ratings: (1)Supply voltage With respect to ground, VCC: -2.0 to 7.0V; (2)DC input voltage, VI: -2.0 to 7.0V; (3)DC output current, per pin, IOUT: -25 to 25mA; (4)Storage temperature No bias, TSTG: -65 to 150℃; (5)Ambient temperature Under bias, TAMB: -65 to 135℃; (6)Junction temperature PQFP, TQFP, and BGA packages, TJ: 135℃.
Features
EPF6016TC144-3N features: (1)Register-rich, look-up table- (LUT-) based architecture; (2)OptiFLEX architecture that increases device area efficiency; (3)Typical gates ranging from 5,000 to 24,000 gates; (4)Built-in low-skew clock distribution tree; (5)100% functional testing of all devices; (6)test vectors or scan chains are not required.

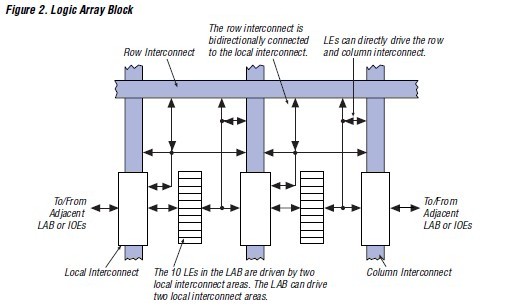

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPF6016TC144-3N |
|
IC FLEX 6000 FPGA 16K 144-TQFP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
EPF6010ATC100-1 |
|
IC FLEX 6000 FPGA 10K 100-TQFP |
Data Sheet |
|
|
||||||
|
EPF6010ATC100-1N |
|
IC FLEX 6000 FPGA 10K 100-TQFP |
Data Sheet |
|
|
||||||
|
EPF6010ATC100-3 |
|
IC FLEX 6000 FPGA 10K 100-TQFP |
Data Sheet |
|
|
||||||
|
EPF6010ATC100-3N |
|
IC FLEX 6000 FPGA 10K 100-TQFP |
Data Sheet |
|
|
||||||
|
EPF6010ATC144-1 |
|
IC FLEX 6000 FPGA 10K 144-TQFP |
Data Sheet |
|
|
||||||
|
EPF6010ATC144-3 |
|
IC FLEX 6000 FPGA 10K 144-TQFP |
Data Sheet |
|
|
||||||
