Product Summary
The XC95288XL-10PQG208C is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. The XC95288XL-10PQG208C is comprised of 16 54V18 Function Blocks, providing 6,400 usable gates.
Parametrics
XC95288XL-10PQG208C absolute maximum ratings: (1)Supply voltage relative to GND, VCC: –0.5 to 4.0V; (2)Input voltage relative to GND, VIN: –0.5 to 5.5V; (3)Voltage applied to 3-state output, VTS: –0.5 to 5.5V; (4)Storage temperature (ambient), TSTG: –65 to +150℃; (5)Maximum soldering temperature (10s @ 1/16 in. = 1.5 mm), TSOL: +260℃; (6)Junction temperature, TJ: +150℃.
Features
XC95288XL-10PQG208C features: (1)6 ns pin-to-pin logic delays; (2)System frequency up to 208 MHz; (3)288 macrocells with 6,400 usable gates; (4)Available in small footprint packages; (5)Fast concurrent programming; (6)Slew rate control on individual outputs; (7)Enhanced data security features; (8)Excellent quality and reliability; (9)Pin-compatible with 5V-core XC95288 device in the 208-pin HQFP package.

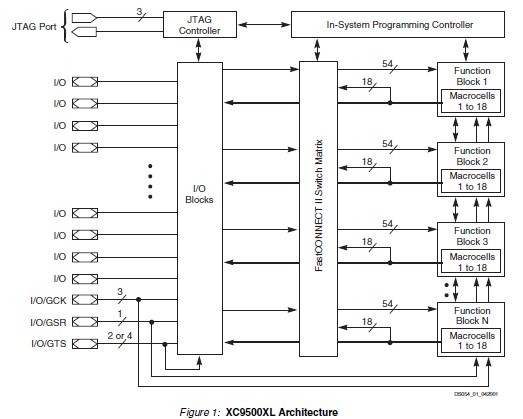

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC95288XL-10PQG208C |
|
IC CPLD 6.4K 288MCELL 208-PQFP |
Data Sheet |
|
|
||||||||||||||||
