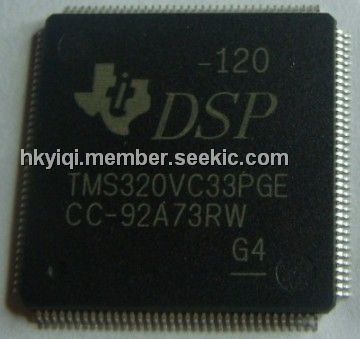

Product Summary

The TMS320VC33PGE120 is a 32-bit, floating-point processor manufactured in 0.18-μm four-level-metal CMOS(TImeline) technology. The TMS320VC33PGE120 optimizes speed by implementing functions in hardware that other processors implement through software or microcode. This hardware-intensive approach provides performance previously unavailable on a single chip. The TMS320VC33PGE120 can perform parallel multiply and ALU operations on integer or floating-point data in a single cycle.

Parametrics

TMS320VC33PGE120 absolute maximum ratings: (1)Supply voltage range:-0.3V to 4V; (2)Supply voltage range:-0.3V to 2.4V; (3)Input voltage range:-1V to 4.6V; (4)Output voltage range:-0.3V to 4.6V ; (5)Operating case temperature range:0℃ to 90℃, TC (PGEA-industrial):-40℃ to 100℃; (6)Storage temperature range:-55℃ to 150℃.

Features

TMS320VC33PGE120 features: (1)144-Pin Low-Profile Quad Flatpack (LQFP)(PGE Suffix); (2)Two Address Generators With Eight; (3)Auxiliary Registers and Two Auxiliary; (4)Register Arithmetic Units (ARAUs); (5)Two Low-Power Modes; (6)Two- and Three-Operand Instructions; (7)Parallel Arithmetic/Logic Unit (ALU) and Multiplier Execution in a Single Cycle; (8)Block-Repeat Capability; (9)Zero-Overhead Loops With Single-Cycle Branches; (10)Conditional Calls and Returns; (11)Interlocked Instructions for Multiprocessing Support; (12)Bus-Control Registers Configure Strobe-Control Wait-State Generation; (13)1.8-V (Core) and 3.3-V (I/O) Supply Voltages; (14)x5 Phase-Locked Loop (PLL) Clock Generator; (15)Very Low Power: < 200 mW @ 150 MFLOPS; (16)32-Bit High-Performance CPU; (17)16- /32-Bit Integer and 32- /40-Bit Floating-Point Operations; (18)Four Internally Decoded Page Strobes to Simplify Interface to I/O and Memory Devices; (19)Boot-Program Loader; (20)EDGEMODE Selectable External Interrupts; (21)32-Bit Instruction Word, 24-Bit Addresses; (22)Eight Extended-Precision Registers.

Diagrams

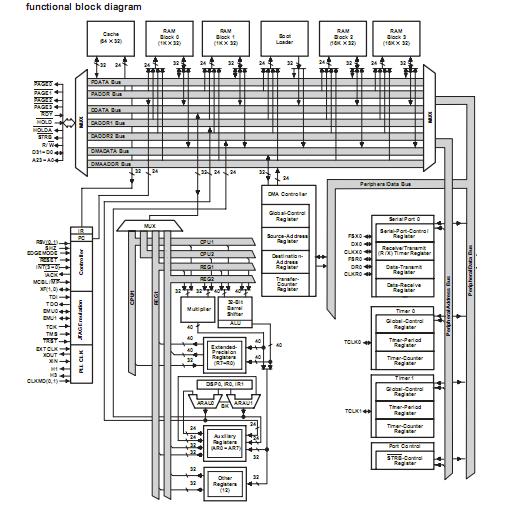

TMS320VC33PGE120 functional block diagram
