Product Summary

The AD9888KS-170 is a complete 8-bit, 205 MSPS monolithic analog interface. It is optimized for capturing RGB graphics signals from personal computers and workstations. Fabricated in an advanced CMOS process, the AD9888KS-170 is provided in a space-saving 128-lead MQFP surface mount plastic package and is specified over the 0℃ to 70℃ temperature range. The applications of the AD9888KS-170 are RGB Graphics Processing, LCD Monitors and Projectors, Plasma Display Panels, Scan Converters, Microdisplays, Digital TV.

Parametrics

AD9888KS-170 absolute maximum ratings: (1)VD:3.6V; (2)VDD:3.6V; (3)Analog Inputs:VD to 0.0V; (4)VREF IN:VD to 0.0V; (5)Digital Inputs:5 V to 0.0V; (6)Digital Output Current:20 mA; (7)Operating Temperature:–25℃ to +85℃; (8)Storage Temperature:–65℃ to +150℃; (9)Maximum Junction Temperature:150℃; (10)Maximum Case Temperature:150℃.

Features

AD9888KS-170 features: (1)205 MSPS Maximum Conversion Rate; (2)500 MHz Programmable Analog Bandwidth; (3)0.5 V to 1.0 V Analog Input Range; (4)Less than 450 ps p-p PLL Clock Jitter @ 205 MSPS; (5)3.3 V Power Supply; (6)Full Sync Processing; (7)Sync Detect for “Hot Plugging”; (8)2:1 Analog Input Mux; (9)4:2:2 Output Format Mode; (10)Midscale Clamping; (11)Power-Down Mode; (12)Low Power: <1 W Typical @ 205 MSPS.

Diagrams

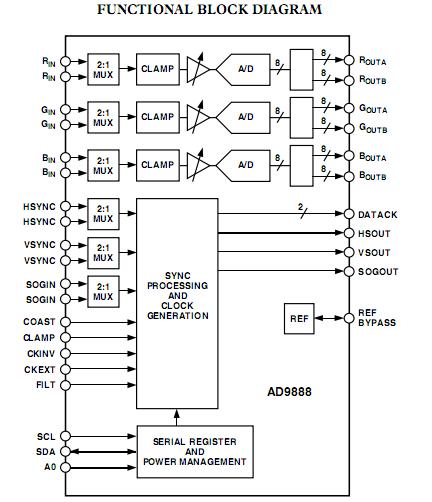

AD9888KS-170 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9888KS-170
AD9888KS-170
Analog Devices Inc
IC ANALOG INTRFC 170MSPS 128MQFP
Data Sheet
Negotiable
