Product Summary
The Realtek RTL8139D-LF is a highly integrated and cost-effective single-chip Fast Ethernet controller that provides 32-bit performance, PCI bus master capability, and full compliance with IEEE 802.3u 100Base-T specifications and IEEE 802.3x Full Duplex Flow Control. The RTL8139D-LF also supports Advanced Configuration Power management Interface (ACPI), PCI power management for modern operating systems that are capable of Operating System Directed Power Management (OSPM) to achieve the most efficient power management possible. The RTL8139D-LF also supports shared Boot ROM pins & clock run pin.
Parametrics
RTL8139D-LF absolute maximum ratings: (1)Minimum High Level Output Voltage: 0.9 * VCC to VCC at IOH= -8mA; (2)Maximum Low Level Output Voltage: 0.1 * Vcc; (3)Minimum High Level Input Voltage: 0.5 * Vcc to Vcc+0.5 V at IOL= 8mA ; (4)Maximum Low Level Input Voltage: -0.5 to 0.3 * Vcc V; (5)Input Current: -1.0 to 1.0 uA at VIN=VCC or GND; (6)Tri-State Output Leakage Current: -10 to 10 uA at VOUT=VCC or GND; (7)Average Operating Supply Current: 330 mA at IOUT=0mA.
Features
RTL8139D-LF features: (1)100 pin QFP/LQFP; (2)Integrated Fast Ethernet MAC, Physical chip and transceiver in one chip; (3)10Mbps and 100Mbps operation; (4)Supports 10Mbps and 100Mbps N-way Auto-negotiation operation; (5)Supports PCI multi-function capabilities; (6)PCI local bus single-chip Fast Ethernet controller: Complies with PCI Revision 2.2, Supports PCI clock 16.75MHz-40MHz, Supports PCI target fast back-to-back transaction.

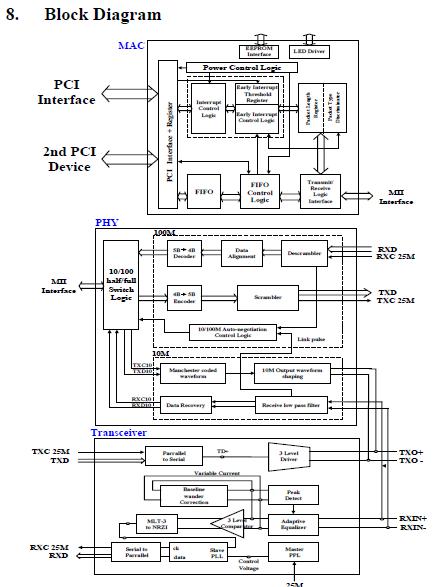

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
RTL8139D-LF |
Other |
Data Sheet |
Negotiable |
|
||||||
