Product Summary

The NVC1600D is a 16-channel color video controller for the DVR and multiplexer applications. This processor accepts 16 camera inputs and 4 PB inputs, and produces 6 outputs; 2 outputs for normal display path and spot display path for monitoring, and 4 outputs for record path controlled independently for recording. Input/output interface of NVC1600D accepts ITU.R BT656 4:2:2 8-bit format. This processor supports high quality of H/V Scaler, Field/Frame Freeze, Linear Zoom, Edge Enhance, Motion Tracing, Graphic OSD, Mouse interface and Overlay functions for display. Furthermore, NVC1600D also supports 60 Fields/sec, 30 Frames/sec switching and 120 CIF images/sec with time scheduling function per each record output. In addition, NVC1600D supports PS/2 keyboard, PS/2 mouse, key pad(6×6), remote control interface and parallel host interface for conveniences.

Features

NVC1600D features: (1)Accepts NTSC/PAL video format; (2)64Mbit, 32-bit bus SDRAM direct interface; (3)8-bit parallel host interface; (4)Package(492-PBGA, 35mm×35mm, 1.27P); (5)Programmable picture size and location; (6)High quality H/V scaler(3/4,2/3,1/2,1/3,1/4,1/5,1/6); (7)PIP/Freeze/Linear zoom functions(max. ×128); (8)H/V edge enhancement; (9)Supports graphic OSD; (10)Motion detection and tracing(30×24 windows); (11)16-single box overlay function for various applications; (12)Various playback display format.

Diagrams

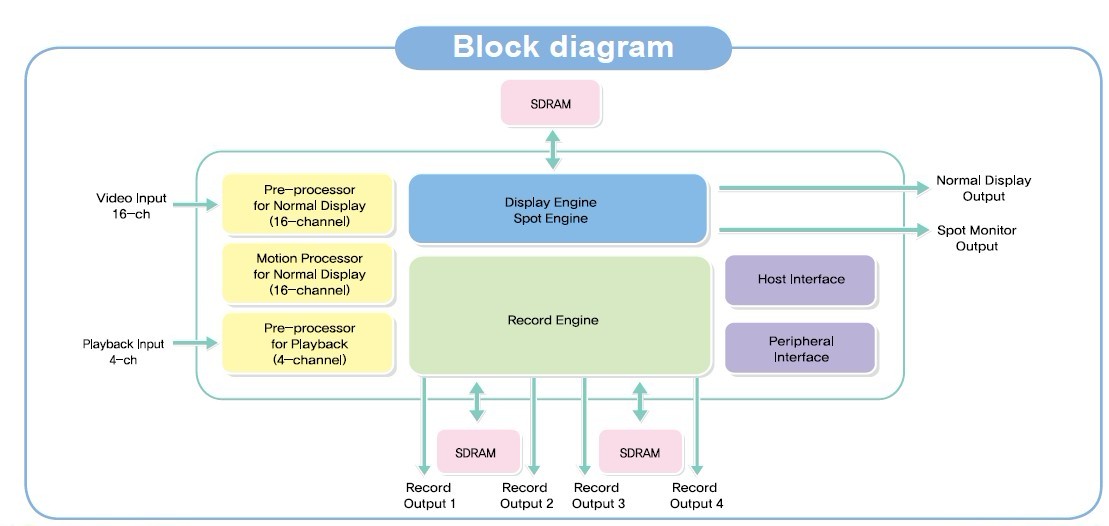

NVC1600D block diagram
