Product Summary
The PCI9054-AC50PI is a PCI Bus Master I/O Accelerator Chip. It offers a variety of technological advances and features designed to simplify complex telecom, networking and I/O adapter embedded designs. The PCI9054-AC50PI provides an advanced Data Pipe ArchitectureTM with two DMA engines, an enhanced direct-connect interface to the MPC 850/860, a 50MHz Local bus, and an industrial temperature range 225-ball PBGA. The PCI9054-AC50PI offers a configurable Local Bus, unlimited bursting, and Hot Swap Friendly features like the Hot Swap Configuration Register, and resources for software connection control of the ENUM# signal, ejector switch, and the status LED.
Parametrics
PCI9054-AC50PI general specifications: (1)Standard Package:500; (2)Category:Integrated circuit; (3)Current - Collector (Ic) (Max):8A; (4)Voltage - Collector Emitter Breakdown (Max):600V; (5)Vce Saturation (Max) @ Ib, Ic:1.6V @ 800mA, 5A; (6)Current - Collector Cutoff (Max):400μA; (7)DC Current Gain (hFE) (Min) @ Ic, Vce:60 @ 5A, 5V; (8)Power - Max:58W; (9)Packaging:Tray, Reel.
Features
PCI9054-AC50PI features: (1)PCI v2.2 Power Management Spec compatible ; (2)PCI v2.2 Vital Product Data(VPD) configuration support; (3)PCI Dual Address Cycle (DAC) support; (4)Programmable Interrupt Generator; (5)Programmable Burst Management; (6)Supports Type 0 and Type 1 Configuration Cycles; (7)Supports Local Bus Direct-Connect to MPC 850/860 PowerQUICC, Intel i960, and IBM PPC 401 CPUs and similar bus protocol devices; (8)3.3V, 5V Tolerant PCI signaling supports Universal PCI Adapter designs; (9)Flexible 3.3V, 5V Tolerant Local Bus operation up to 50MHz; (10)32-Bit Multiplexed, or Non-Multiplexed Local Bus Supports 8-, 16-, and 32-Bit Peripheral and Memory devices; (11)CompactPCI Hot Swap Friendly; (12)I2O v1.5 Ready Messaging Unit; (13)Industrial Temp Range Operation; (14)3.3V CMOS in 176-pin PQFP or 225-ball PBGA packages.

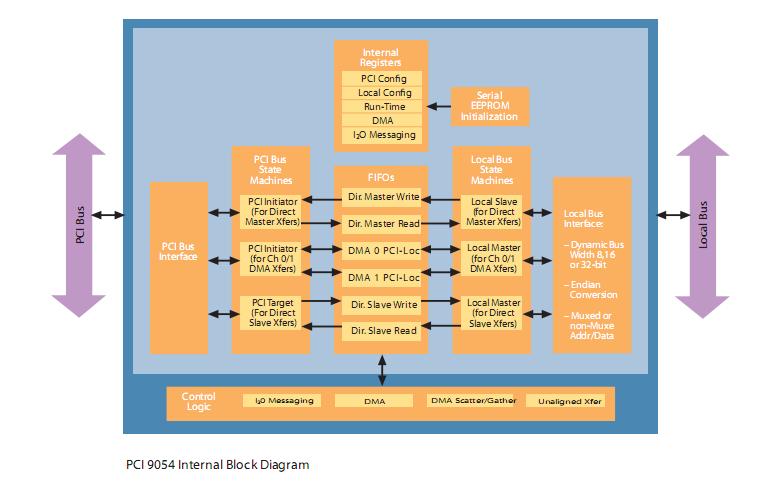

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCI9054-AC50PI F |
PLX Technology |
Peripheral Drivers & Components (PCIs) 32Bit Master Chip |
Data Sheet |
|
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
|
PCI9030-AA60BI |
PLX Technology |
Peripheral Drivers & Components (PCIs) 32-bit 33MHz PCI v.2.2-compliant |
Data Sheet |
Negotiable |
|
||||||||||
|
PCI9030-AA60BI-F |
PLX Technology |
Peripheral Drivers & Components (PCIs) 32-bit 33MHz PCI v.2.2-compliant |
Data Sheet |
|
|
||||||||||
|
PCI9030-AA60PI |
PLX Technology |
Peripheral Drivers & Components (PCIs) 32-bit 33MHz PCI v.2.2-compliant |
Data Sheet |
Negotiable |
|
||||||||||
|
PCI9030-AA60PI-F |
PLX Technology |
Peripheral Drivers & Components (PCIs) 32-bit 33MHz PCI v.2.2-compliant |
Data Sheet |
|
|
||||||||||
|
PCI9030-AA60VPI |
PLX Technology |
Peripheral Drivers & Components (PCIs) 32-bit 33MHz PCI v.2.2-compliant |
Data Sheet |
Negotiable |
|
||||||||||
|
PCI9030RDK-LITE |
PLX Technology |
Interface Development Tools PCI9030 KIT |
Data Sheet |
|
|
||||||||||
