Product Summary
The AL240C-QF-PBF standalone video decoder device provides an easy solution for video decoding function. AL240C-QF-PBF is mainly composed of chips such as video encoder and microcontroller. AL240C-QF-PBF supports input connectors including analog CVBS and S-video. AL240C-QF-PBF provides cost-effective and high-quality NTSC/PAL/SECAM video decoding with an adaptive comb-filter Y/C separation process. AL240C-QF-PBF is also equipped with BCS(Brightness, Contrast, Saturation and Hue) control for interlaced video and fast channel switch under CVBS video inputs.
Parametrics
AL240C-QF-PBF absolute maximum ratings: (1)NTSC – M/4.43 Standard; (2)PAL –I/B/G/H/D/N/M Standard; (3)SECAM Standard; (4)Video Input Formats: CVBS (RCA), S-Video (Y/C); (5)S-Video and RCA composite video input connectors for external analog video sources; (6)48-pin connector is used for digital video & control signal.
Features
AL240C-QF-PBF features: (1)High quality adaptive comb-filter for Y/C separation; (2)Various analog video types and inputs; (3)BCS (Brightness, Contrast, Saturation and Hue) control; (4)Support analog CVBS, S-Video & YPrPb outputs; (5)Fast channel switch with smooth display under CVBS input signals; (6)Close Caption VBI detection & decoding; (7)10bit ADC for high analog video conversion quality.

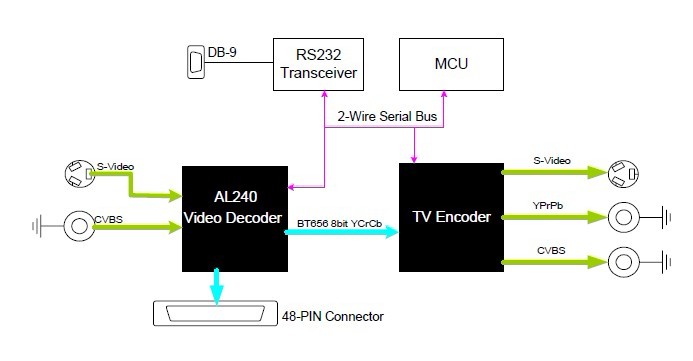

Diagrams
 |
