Product Summary
The ADUM5000ARWZ is an isolated dc-to-dc converter based on the Analog Devices, Inc., iCoupler technology. The dc-to-dc converter in this device provides regulated, isolated power in several combinations of input and output voltages. The applications of the ADUM5000ARWZ include RS-232/RS-422/RS-485 transceivers, Industrial field bus isolation, Power supply startups and gate drives, Isolated sensor interfaces, Industrial PLCs.
Parametrics
ADUM5000ARWZ absolute maximum ratings: (1)Storage Temperature (TST): -55 to +150℃; (2)Ambient Operating Temperature (TA): -40 to +105℃; (3)Supply Voltages (VDDx, VISO): -0.5 V to +7.0 V; (4)Input Voltage (RCSEL,RCIN, VSEL): -0.5 V to VDDI + 0.5 V; (5)Output Voltage (RCOUT): -0.5 V to VDDO + 0.5 V; (6)Average Total Output Current, IISO: 100 mA; (7)Common-Mode Transients: -100 kV/μs to +100 kV/μs.
Features
ADUM5000ARWZ features: (1)isoPower, integrated isolated dc-to-dc converter; (2)Regulated 3.3 V or 5 V output; (3)Up to 500 mW output power; (4)16-lead SOIC package with 7.6 mm creepage; (5)High temperature operation: 105℃ maximum; (6)Thermal overload protection; (7)Safety and regulatory approvals ; (8)UL recognition; (9)2500 V rms for 1 minute per UL 1577; (10)CSA Component Acceptance Notice #5A; (11)VDE certificate of conformity (pending); (12)IEC 60747-5-2 (VDE 0884, Part 2); (13)VIORM = 560 V peak.

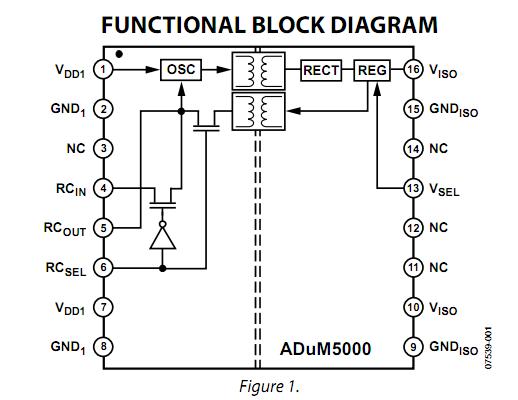

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADUM5000ARWZ |
|
IC DGTL ISOLATOR W/DC-DC 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
ADUM5000ARWZ-RL |
|
IC DIG ISOLATOR W/DC-DC 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
