Product Summary
The QU80386EXTC-33 is an EXTB embedded processor, which operates at 20 or 25 MHz at 3 Volts nominal.
Parametrics
QU80386EXTC-33 absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Supply Voltage with Respect to VSS: –0.5 V to 6.5 V; (3)Voltage on Other Pins: –0.5 V to VCC + 0.5 V; (4)VCC (Digital Supply Voltage): 4.5 V to 5.5 V; (5)TCASE (Case Temperature Under Bias): TCASE(MIN): -40℃; (6)FOSC (Operating Frequency): 0 MHz to 33 MHz.
Features
QU80386EXTC-33 features: (1)Static Intel386 CPU Core: Low Power Consumption, Operating Power Supply: EXTB: 2.7 V to 3.6 V, EXTC: 4.5 V to 5.5 V; (2)Operating Frequency: 20 MHz EXTB at 2.7 V to 3.6 V, 25 MHz EXTB at 3.0 V to 3.6 V, 25/33 MHz EXTC at 4.5 V to 5.5 V; (3)Transparent Power-management System Architecture: Intel System Management Mode Architecture Extension for Truly Compatible Systems, Power Management Transparent to Operating Systems and Application Programs, Programmable Power-management Modes; (4)Powerdown Mode: Clock Stopping at Any Time, Only 10–20 μA Typical CPU Sink Current.

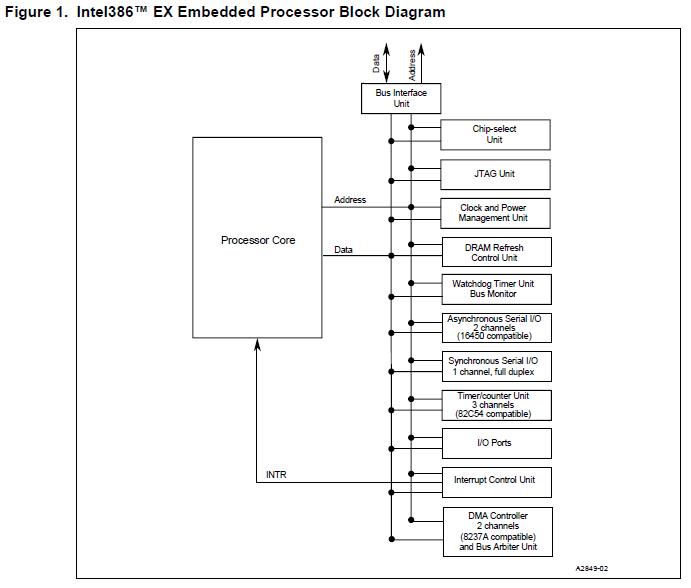

Diagrams
 |
 QU80386EXTB25 |
|
IC INT PROC 3.3V 25MHZ 132QFP |
Data Sheet |
Negotiable |
|
||||
|
QU80386EXTC25 |
|
IC INT PROC 5V 25MHZ 132QFP |
Data Sheet |
Negotiable |
|
||||
|
QU80386EXTC33 |
|
IC INT PROC 5V 33MHZ 132QFP |
Data Sheet |
Negotiable |
|
||||
 |
QU80386SXTA25 |
|
IC MPU 32-BIT 5V 25MHZ 100-QFP |
Data Sheet |
Negotiable |
|
||||
|
QU80386SXTA33 |
|
IC MPU 32-BIT 5V 33MHZ 100-QFP |
Data Sheet |
Negotiable |
|
||||
|
QU80386SXTA40 |
|
IC MPU 32-BIT 5V 40MHZ 100-QFP |
Data Sheet |
Negotiable |
|
||||
