Product Summary

The SII9011CLU is a PanelLink Receiver. It is a low-cost, fully HDMI-compliant receiver that fits directly into home theater products such as LCD TVs, plasma TVs and HDTVs. The new receiver is capable of supporting bandwidths up to 165MHz and video resolutions up to 1080p and UXGA. The applications of the SII9011CLU are LCD TVs, Plasma TVs, HDTVs, A/V Receivers, Media Receiver, Set-Top Boxes.

Features

SII9011CLU features: (1)Programmable 3-wire output supports numerous low-cost I2S audio DACs; (2)Supports IEC60958 2-channel PCM ; (3)Capable of carrying IEC61937 compressed audio (Dolby Digital, DTS, etc.); (4)Register-programmable via slave I2C interface; (5)Auto video mode simplifies design; (6)Auto audio mode allows more robust system; (7)Flexible interrupt registers with interrupt pin; (8)1.8V core provides low-power operation; (9)Flexible power-down modes; (10)SiI 9011 Receiver Reference Board; (11)HDMI to HDMI cable; (12)HDMIGear Receiver Software Tool.

Diagrams

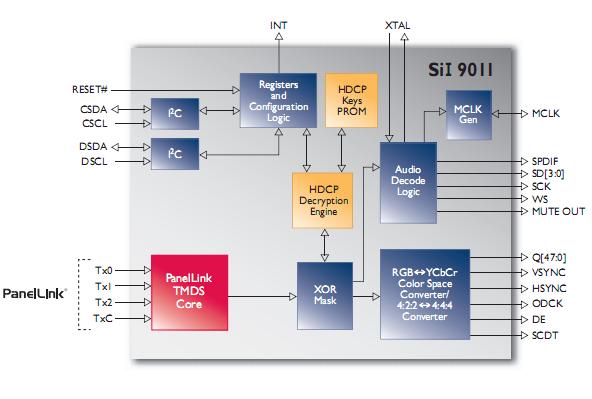

SII9011CLU block diagram
