Product Summary
The ADVFC32KN is a low cost monolithic voltage-to-frequency (V/F) converter or frequency-to-voltage (F/V) converter with good linearity (0.01% max error at 10 kHz) and operating frequency up to 0.5 MHz. In the V/F configuration, positive or negative input voltages or currents can be converted to a proportional frequency using only a few external components. For F/V conversion, the ADVFC32KN is used with a simple biasing network to accommodate a wide range of input logic levels.
Parametrics
ADVFC32KN technical specifications: (1)Lead-Free Status: Lead Free; (2)Packaging: Tube, Bulk; (3)Case / Package / Footprint: DIP-14; (4)Lifecycle Status: Active; (5)Mounting Type: Through Hole; (6)RoHS: Non-Compliant.
Features
ADVFC32KN features: (1)High Linearity; (2)Output TTL/CMOS Compatible; (3)V/F or F/V Conversion; (4)6 Decade Dynamic Range; (5)Voltage or Current Input; (6)Reliable Monolithic Construction; (7)MIL-STD-883 Compliant Versions Available.

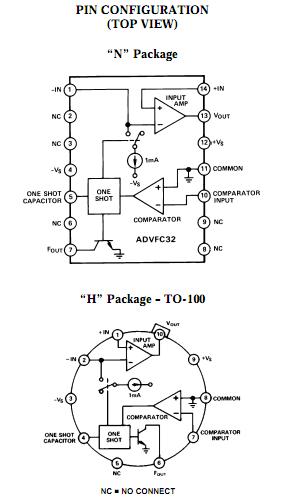

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADVFC32KN |
|
IC CONV V/F F/V 0-70DEGC 14-DIP |
Data Sheet |
|
|
||||||||||||||||
|
ADVFC32KN/+ |
|
IC CONVERTER V/F-F/V 14DIP |
Data Sheet |
|
|
||||||||||||||||
|
ADVFC32KNZ |
|
IC CONV V/F F/V 0-70DEGC 14DIP |
Data Sheet |
|
|
||||||||||||||||
