Product Summary

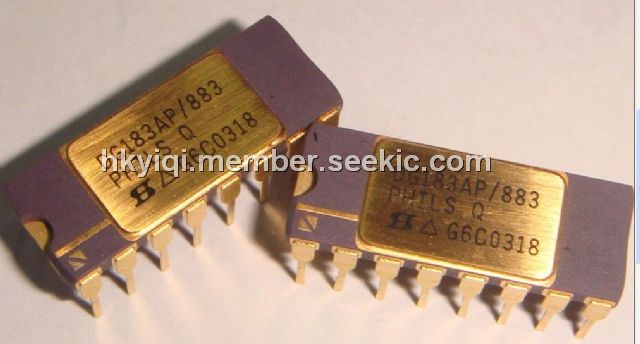

The DG183AP/883 is a precision dual double-pole, single-throw (DPST) analog switch designed to provide accurate switching of video and audio signals. This series is ideally suited for applications requiring a constant on-resistance over the entire analog range. To achieve fast and accurate switch performance, each device comprises four n-channel JFET transistors and a TTL compatible bipolar driver. In the on state, each switch conducts current equally well in either direction. In the off condition, the switches will block up to 20 V peak-to-peak, with feedthrough of less than -60 dB at 10 MHz. The applications of the DG183AP/883 include Audio Switching, Precision Switching, Video Switching, Video Routing, Sample/Hold, Aerospace.

Parametrics

DG183AP/883 absolute maximum ratings: absolute maximum ratings: (1)V+ to V-: 36 V; (2)V+ to VD: 33 V; (3)VD to V–: 33 V; (4)VD to VD: ±22 V; (5)VL to V–: 36 V; (6)VL to VIN: 8 V; (7)VL to VR: 8 V; (8)VIN to VR: 8 V; (9)VR to V–: 27 V; (10)VR to VIN: 2 V; (11)Current (S or D) DG183: 200 mA; (12)Current (S or D) DG184, DG185: 30 mA; (13)Current (All Other Pins): 30 mA; (14)Storage Temperature: -65 to 150℃; (15)Power Dissipationa, 16-Pin Sidebraze: 900 mW; 14-Pin Flat Pack: 900 mW.

Features

DG183AP/883 features: (1)Constant On-Resistance Over; (2)Entire Analog Range; (3)Low Leakage; (4)Low Crosstalk; (5)Break-Before-Make Switching; (6)Rad Hardness.

Diagrams

DG183AP/883 block diagram
