Product Summary

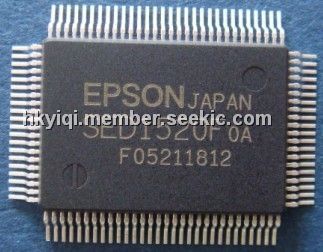

The SED1520FOA is a dot matrix LCD driver LSI intended for display of characters and graphics. The bit-addressable display data, which is sent from a microcomputer, is stored in a built-in display data RAM and generates the LCD drive signal. The SED1520FOA incorporates innovative circuit design strategies to assure very low current dissipation and a wide range of operating voltages. With these features, the SED1520FOA permits the user to implement high-performance handy systems operating from a miniature battery.
Parametrics
SED1520FOA absolute maximum ratings: (1)Supply voltage: VSS –8.0 ~ +0.3 V; (2)Supply voltage: V5 –16.5 ~ +0.3 V; (3)Supply voltage: V5 ~ +0.3 V; (4)Input voltage: VSS – 0.3 ~ +0.3 V; (5)Output voltage: VSS – 0.3 ~ +0.3 V; (6)Allowable loss: 250 mW; (7)Operating temperature: –30 ~ +85 ℃; (8)Storage temperature: –65 ~ +150 ℃; (9)Soldering temperature/time: 260/10 (at leads) ℃/Sec.
Features
SED1520FOA features: (1)Low-power CMOS technology; (2)Fast CPU 8-bit data interface (80xx, 68xx); (3)Segment output: 61 outputs; (4)Common output: 16 outputs; (5)Duty cycle: SED1520: 1/16 to 1/32, SED1521: 1/8 to 1/32; (6)Built-in display data RAM: 2560 bits; (7)Rich display command setting; (8)On-chip CR oscillation circuit; (9)Recommended expansion segment driver: 80 bit; (10)Master/slave operation is supported; (11)Low power consumption: 30μW; (12)LCD voltage: 3.5 to 13V; (13)Single power supply: 2.4 to 7.0V.

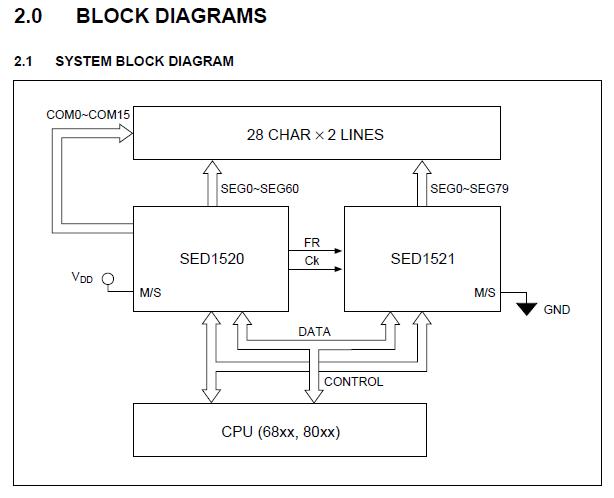

Diagrams
 |
