Product Summary

The CS5530 is a 24-bit ADC with Ultra-low-noise Amplifier designed to work in conjunction with an AMD Geode GX1 processor. Together, the Geode GX1 processor and CS5530 companion device provide a system-level solution well suited for the high performance needs of a host of devices which include digital set-top boxes and thin client devices.

Parametrics

CS5530 absolute maximum ratings: (1)Operating Case Temperature: 0 to 110 ℃; (2)Storage Temperature: -65 to 150 ℃; (3)Supply Voltage: 4.0 V; (4)Voltage On Any Pin: –0.5 to 5.5 V; (5)Input Clamp Current, IIK: –0.5 to 10 mA; (6)Output Clamp Current, IOK: 25 mA.

Features

CS5530 features: (1)Processor support; (2)PCI bus master/slave interface; (3)ISA bus interface; (4)AT compatibility logic; (5)IDE controllers; (6)Power management: GPIO interfaces, Traps, Events, Timers; (7)Joystick/Game port interface; (8)Virtual audio support hardware; (9)Video display, which includes MPEG accelerator, RAMDAC, and video ports; (10)USB controller.

Diagrams

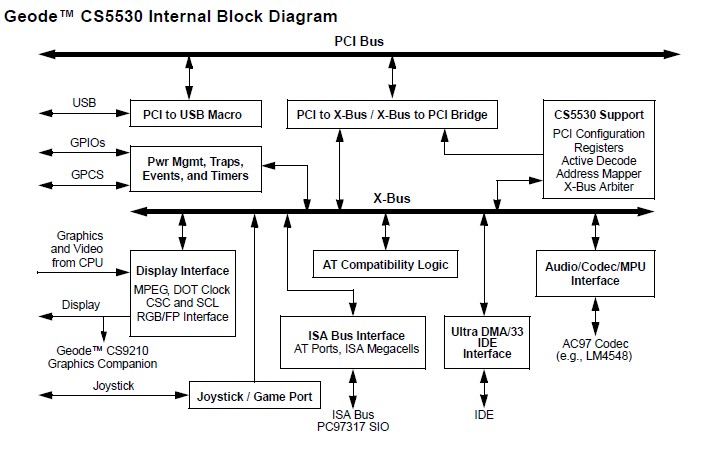

CS5530 block diagram
