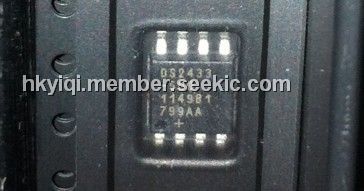

DS2433+

4k-bit 1-wire EEPROM, 8SOIC, -0.5V to +7.0V, DS2433+, Dallas

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.40~2.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.40~2.05

PartNumber:: DS2433+

Brand:: Dallas Semiconductor - Maxim | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-18

From Other Seller

Part Number:DS2433+
US $1.40 - 2.05
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DS2433+ is a 4k-bit 1-wire EEPROM. The DS2433+ 4K-bit 1-Wire EEPROM identifies and stores relevant information about the product to which it is associated. This lot or product specific information of the DS2433+ can be accessed with minimal interface, for example a single port pin of a microcontroller. The DS2433+ consists of a factory-lasered registration number that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit Family Code (23h) plus 4096 bits of user-programmable EEPROM.

Parametrics

DS2433+ absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.5V to +7.0V; (2)Operating Temperature: -40℃ to +85℃; (3)Storage Temperature: -55℃ to +125℃; (4)Soldering Temperature: 260℃ for 10 seconds.

Features

DS2433+ features: (1)Built-in multidrop controller ensures compatibility with other MicroLAN products; (2)Memory partitioned into sixteen 256-bit pages for packetizing data; (3)256-bit scratchpad with strict read/write protocols ensures integrity of data transfer; (4)Reduces control, address, data and power to a single data pin; (5)Directly connects to a single port pin of a microprocessor and communicates at up to 16.3k bits per second; (6)Overdrive mode boosts communication speed to 142k bits per second; (7)8-bit family code specifies DS2433 communication requirements to reader.
