LT1766EGN

1.5A, 16SSOP, LT1766EGN, 60V, 200kHz, monolithic buck switching regulator

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.20~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.20~3.00

PartNumber:: LT1766EGN

Brand:: Linear Technology - Linear | Pack: SSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-07

From Other Seller

Part Number:LT1766EGN
US $1.20 - 3.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

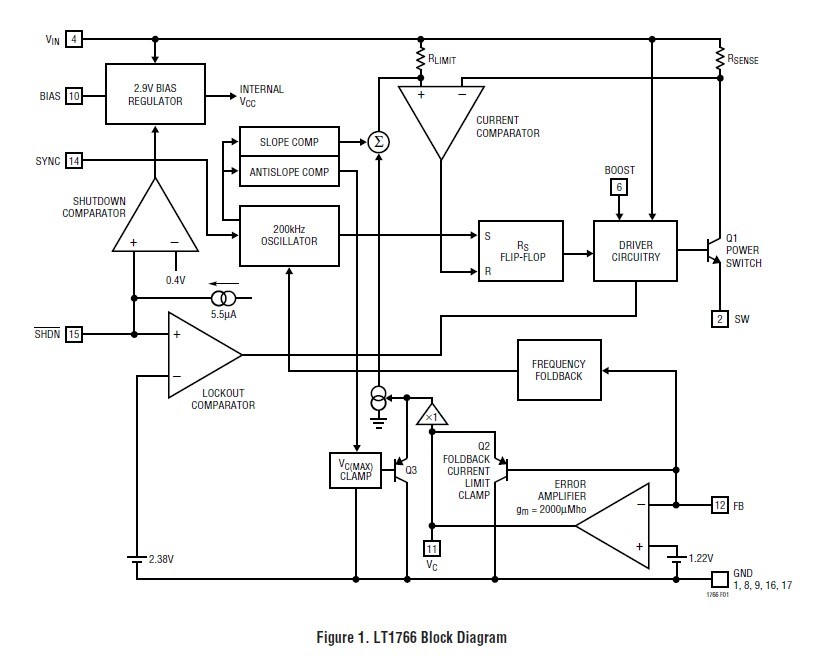

The LT1766EGN is a 200kHz monolithic buck switching regulator that accepts input voltages up to 60V. A high efficiency 1.5A, 0.2W switch is included on the die along with all the necessary oscillator, control and logic circuitry. A current mode control architecture delivers fast transient response and excellent loop stability. The applications of the LT1766EGN include: (1)High Voltage, Industrial and Automotive; (2)Portable Computers; (3)Battery-Powered Systems; (4)Battery Chargers; (5)Distributed Power Systems.

Parametrics

LT1766EGN absolute maxing ratings: (1)Input Voltage (VIN): 60V; (2)BOOST Pin Above SW: 35V; (3)BOOST Pin Voltage: 68V; (4)SYNC, SENSE Voltage: 7V; (5)SHDN Voltage: 6V; (6)BIAS Pin Voltage: 30V; (7)FB Pin Voltage/Current: 3.5V/2mA; (8)Operating Junction Temperature Range: -40℃ to 125℃; (9)Storage Temperature Range: -65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1766EGN features: (1)Wide Input Range: 5.5V to 60V; (2)1.5A Peak Switch Current; (3)Constant 200kHz Switching Frequency; (4)Saturating Switch Design: 0.2Ω; (5)Peak Switch Current Rating Maintained Over Full Duty Cycle Range; (6)Low Effective Supply Current: 2.5mA; (7)Low Shutdown Current: 25μA; (8)1.2V Feedback Reference Voltage; (9)5V Fixed Output; (10)Easily Synchronizable; (11)Cycle-by-Cycle Current Limiting; (12)Small 16-Pin SSOP and Thermally Enhanced TSSOP Packages.
