Product Summary

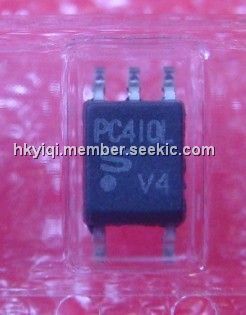

The Photocoupler PC410L contains a LED optically coupled to an OPIC chip. It is packaged in a 5 pin mini-flat. Input-output isolation voltage(rms) is 3.75 kV. The applications of the PC410L are: Programmable controllers, Inverter.
Parametrics
PC410L absolute maximum ratings: (1)Forward current: 20 mA; (2)Power dissipation: 40mW; (3)Supply voltage: 7 V; (4)Collector power dissipation: 85 mW; (5)Isolation voltage: 3.75kV; (6)Operating temperature: -40 to 85 ℃; (7)Storage temperature: -40 to 125℃.
Features
PC410L features: (1)5 pin Mini-flat package; (2)Double transfer mold package (Ideal for Flow Soldering); (3)High noise immunity due to high instantaneous common mode rejection voltage (CMH : MIN.10 kV/μs, CML : MIN. -10 kV/μs); (4)High speed response; (5)High isolation voltage between input and output; (6)Lead-free and RoHS directive compliant.

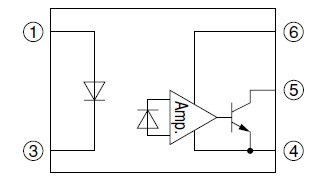

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PC410L |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
 |
PC410L0NIP |
|
PHOTOCOUPLER OPIC 5-SOP |
Data Sheet |
Negotiable |
|
||||||||||
 |
PC410L0NIT0F |
Sharp Microelectronics |
High Speed Optocouplers High CMR 10Mbps |
Data Sheet |
|
|
||||||||||
|
PC410L0YIP |
|
PHOTOCOUPLER OPIC VDE 5-SOP |
Data Sheet |
Negotiable |
|
||||||||||
|
PC410L0YIP0F |
Sharp Microelectronics |
High Speed Optocouplers PC410L0NiP0F w/ VDE |
Data Sheet |
|
|
||||||||||
|
PC410L0YIT0F |
Sharp Microelectronics |
High Speed Optocouplers PC410L0NiT w/ VDE |
Data Sheet |
|
|
||||||||||
|
PC410L0NIP0F |
Sharp Microelectronics |
High Speed Optocouplers High CMR 10Mbps |
Data Sheet |
|
|
||||||||||
