Product Summary
The SGM9115XS is a triple, 9mhz, 3rd order sdtv video filter driver which integrates triple 6dB Gain rail－to－rail output driver and triple 3rd output reconstruction filter, it has 9MHz －3dB bandwidth and 44V/us slew rate. SGM9115XS provides improved image quality compared with passive LC filters and discrete drivers solution. Operating from single supplies ranging from +2.5V to +5.5V and sinking an ultra－low 6.8mA quiescent current, the SGM9115XS is ideally suited for battery powered applications.
Parametrics
SGM9115XS absolute maximum ratings: (1)Input Voltage : GND －0.3 V to (+VS)+0.3V; (2)Storage Temperature Range: –65℃ to +150℃; (3)Junction Temperature : 160℃; (4)Operating Temperature Range : –40℃ to +125℃; (5)Power Dissipation, PD @ TA = 25℃ SO-8 : 0.8W; (6)Package Thermal Resistance SO-8, θJA: 128℃/W; (7)Lead Temperature Range (Soldering 10 sec): 260℃; (8)ESD Susceptibility HBM: 8000V, MM: 400V.
Features
SGM9115XS features: (1)Triple 3rd order 9MHz (SD)filters; (2)Transparent input clamping; (3)6dB output driver Gain and drive dual video load; (4)Rail-to-Rail Output; (5)Input Voltage Range Includes Ground; (6)AC or DC Coupled Inputs; (7)AC or DC Coupled Outputs; (8)Operates from 2.5 V to 5.5 V Single power supply; (9)Low Power (2.3mA/channel)6.8 mA total Supply Current.

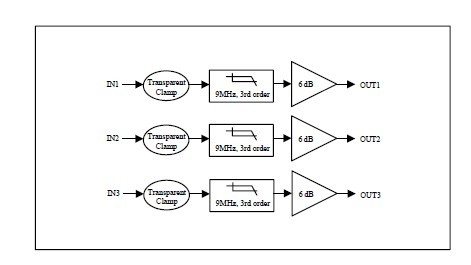

Diagrams
 |
