Product Summary

The SN7407N is a TTL hex buffer/driver. It features high-voltage open-collector output for interfacing with high-level circuits (such as MOS) or for driving high-current loads (such as lamps or relays) and also is characterized for use as buffer for driving TTL inputs. The SN7407N has minimum breakdown voltage of 30 V.

Parametrics

SN7407N absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 5.5 V; (3)Output voltage, VO: 30 V; (4)Package thermal impedance: D package 86℃/W; (5)N package: 80℃/W; (6)NS package: 76℃/W; (7)Storage temperature range: -65 to 150℃.

Features

SN7407N features: (1)Convert TTL Voltage Levels to MOS Levels; (2)High Sink-Current Capability; (3)Input Clamping Diodes Simplify System Design; (4)Open-Collector Driver for Indicator Lamps and Relays; (5)Inputs Fully Compatible With Most TTL Circuits.

Diagrams

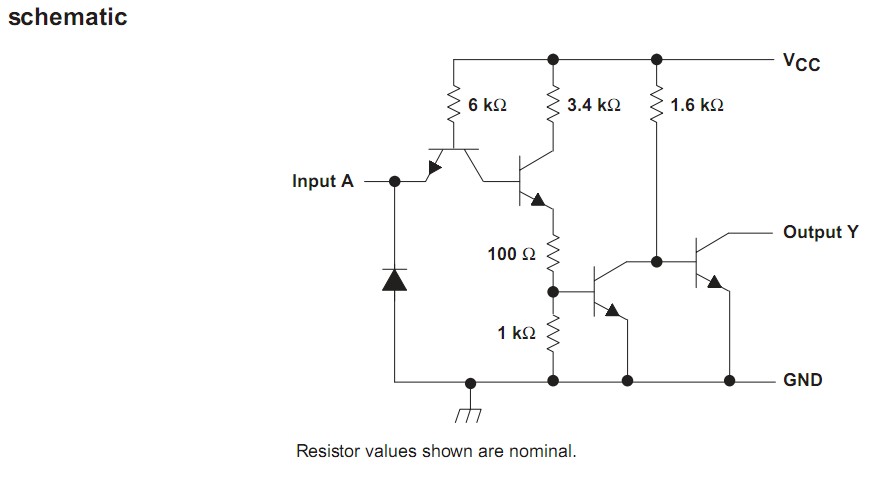

SN7407N schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN7407N
SN7407N
Texas Instruments
Buffers & Line Drivers Hex w/ HV Output
Data Sheet
0-1: $0.49
1-25: $0.44
25-100: $0.39
100-250: $0.34
SN7407NE4
SN7407NE4
Texas Instruments
Buffers & Line Drivers Hex Buffer/Driver
Data Sheet
0-1: $0.49
1-25: $0.44
25-100: $0.39
100-250: $0.34
SN7407NSR
SN7407NSR
Texas Instruments
Buffers & Line Drivers Hex Buffer/Driver
Data Sheet
0-1400: $0.23
1400-2000: $0.21
2000-5000: $0.21
5000-10000: $0.20
SN7407NSRE4
SN7407NSRE4
Texas Instruments
Buffers & Line Drivers Hex Buffer/Driver
Data Sheet
0-1: $0.49
1-25: $0.40
25-100: $0.36
100-250: $0.32
SN7407NSRG4
SN7407NSRG4
Texas Instruments
Buffers & Line Drivers Hex Buffers/Drs
Data Sheet
0-1400: $0.23
1400-2000: $0.21
2000-5000: $0.21
5000-10000: $0.20
