Product Summary
The SN74HC373N is an 8-bit latch. It features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The SN74HC373N is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. While the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is taken low, the Q outputs are latched at the levels that were set up at the D inputs.
Parametrics
SN74HC373N absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND: ±70 mA; (6)Package thermal impedance, θJA: 70℃/W; (7)Storage temperature range, Tstg: -65 to 150℃.
Features
SN74HC373N features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)High-Current 3-State True Outputs Can Drive Up To 15 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 13 ns; (5)±6-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max; (7)Eight High-Current Latches in a Single Package; (8)Full Parallel Access for Loading.

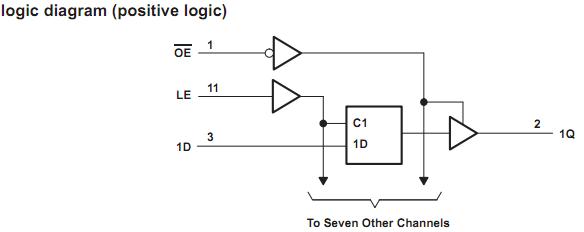

Diagrams
