Product Summary

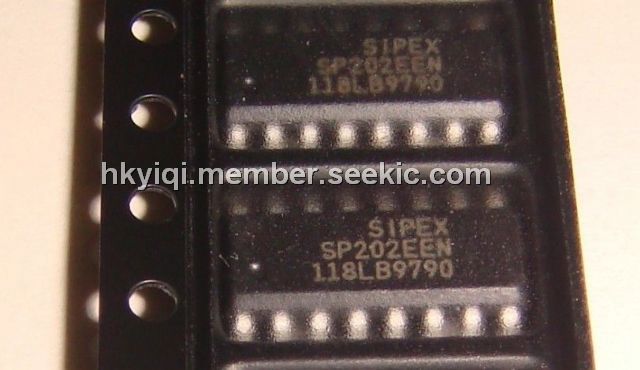

The SP202E/232E/233E/310E/312E devices are a family of line driver and receiver pairs that meet the specifications of RS-232 and V.28 serial protocols with enhanced ESD performance.
The ESD tolerance has been improved on these devices to over ±15KV for both Human Body Model and IEC1000-4-2 Air Discharge Method. These devices are pin-to-pin compatible with
Sipex's SP232A/233A/310A/312A devices as well as popular industry standards.
As with the initial versions, the SP202E/232E/233E/310E/312E devices feature at least 120Kbps data rate under load, 0.1μF charge pump capacitors, and overall ruggedness for commercial applications.
This family also features Sipex's BiCMOS design allowing low power operation without sacrificing performance.
The series is available in plastic and ceramic DIP and SOIC packages operating over the commercial, industrial and military temperature ranges.
Parametrics
(1)Vcc +6V; (2)V+ (Vcc-0.3V) to +11.0V; (3)V--11.0V;(4)Input Voltages; (5)TIN -0.3 to (Vcc +0.3V); (6)RIN ±15V; (7)Output Voltages; (8)TOUT (V+, +0.3V) to (V-, -0.3V); (9)ROUT -0.3V to (Vcc +0.3V); (10)Short Circuit Duration; (11)TOUT Continuous; (12)Power Dissipation; (13)CERDIP 675mW; (14)(derate 9.5mW/°C above +70°C); (15)Plastic DIP 375mW; (16)(derate 7mW/°C above +70°C); (17)Small Outline 375mW ;
Features
The features of SP202EEN can be summarized as (1)Operates from Single +5V Power Supply; (2)Meets All RS-232D and ITU V.28; (3)Specifications; (4)Operates with 0.1μF to 10μF Capacitors; (5)High Data Rate – 120Kbps Under Load; (6)Low Power Shutdown ≤1μA (Typical); (7)3-State TTL/CMOS Receiver Outputs; (8)Low Power CMOS – 3mA Operation; (9)Improved ESD Specifications:; (10)±15kV Human Body Model; (11)±15kV IEC1000-4-2 Air Discharge; (12)±8kV IEC1000-4-2 Contact Discharge.
Diagrams
<DIV>
<DIV><IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/2012755058412.jpg"></DIV></DIV>
