Product Summary

The TX2SA-5V is a tx-relay.

Parametrics

TX2SA-5V absolute maximum ratings: (1) Initial breakdown voltage Between open contacts: 1,000 Vrms for 1 min.(Detection current: 10 mA); (2) Initial breakdown voltage Between contact sets: 1,000 Vrms for 1 min.(Detection current: 10 mA); (3) Initial breakdown voltage Between contact and coil: 2,000 Vrms for 1 min.(Detection current: 10 mA); (4) Operate time [Set time]*3 (at 20°C): Max. 4 ms (Approx. 2 ms); (5)[Max. 4 ms (Approx. 2 ms)]; (6) Unit weight: Approx. 2 g .071 oz.

Features

TX2SA-5V features: (1)Breakdown voltage between contacts and coil: 2,000 V; (2)Surge withstand between contacts and coil: 2,500 V; (3)High contact capacity: 2 A 30 V DC; (4)Surface-mount type available.

Diagrams

TX2SA-5V dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TX2SA-5V
TX2SA-5V
Panasonic Electric Works

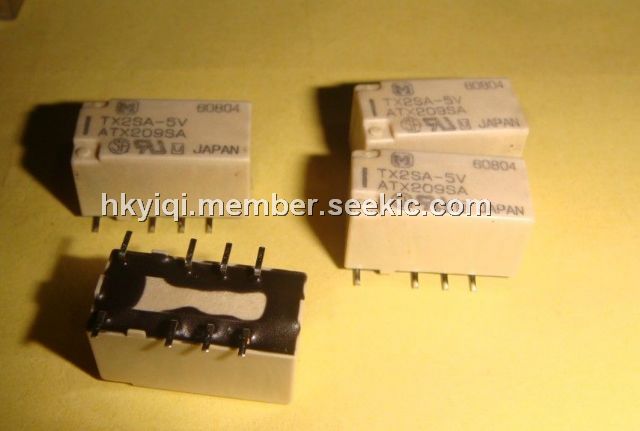

Low Signal Relays - PCB 2A 5VDC DPDT NON-LATCHING SMD
Data Sheet
0-1: $1.98
1-25: $1.89
25-50: $1.64
50-100: $1.43
