Product Summary

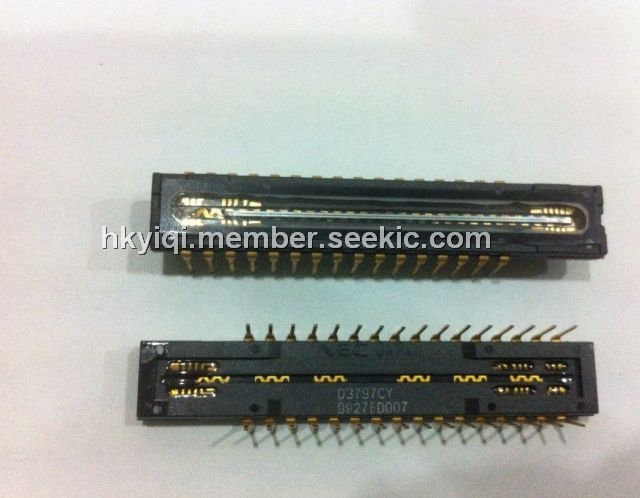

The UPD3797CY is a color CCD (charge coupled device) linear image sensor which changes optical images to electrical signal and has the function of color separation. The UPD3797CY has 3 rows of 5300 pixels, and each row has a singel sided readout type of charge transfer register. And it has reset feed-through level clamp circuits, sample and hold circuits and voltage amplifiers. Therefor, it is suitable for 600 dpi/A4 color image scanners, color facsimiles and so on.
Parametrics
UPD3797CY absolute maximum ratings: (1)storage temperature: -40 to 70℃; (2)output drain voltage, VOD: -0.3 to 15V; (3)shift register clock voltage, V1, V2: -0.3 to 15V; (4)reset gate clock votlage, VRB: -0.3 to 15V; (5)sample and hold clock voltage, VSHB: -0.3 to 15V; (6)reset feed-though level clamp clock voltage, VCLB: -0.3 to 15V; (7)transfer gate clock voltge, VTG1 to VTG3: -0.3 to 15V; (8)operating ambient temperature, TA: -25 to 60℃.
Features
UPD3797CY features: (1)vaild photocell: 5300 pixel×3; (2)photocell’s pitch: 7μm; (3)line spacing: 28μm red line-green line, green line-blue line; (4)color filter: prmary colors, pigment filter; (5)resolution: 24 dot/mm A4 size; (6)drive clock level: CMOS output under 5V operation; (7)data rate: 3MHz max; (8)power supply: 12V.

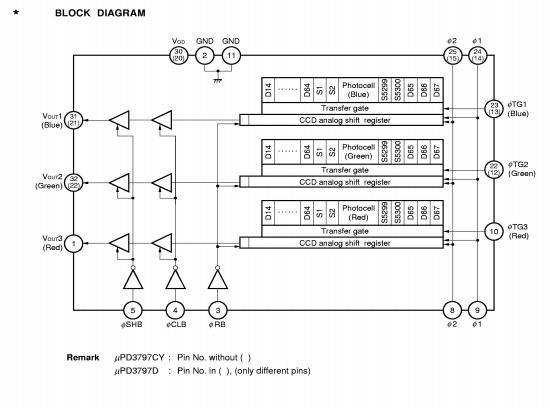

Diagrams
 |
