Product Summary

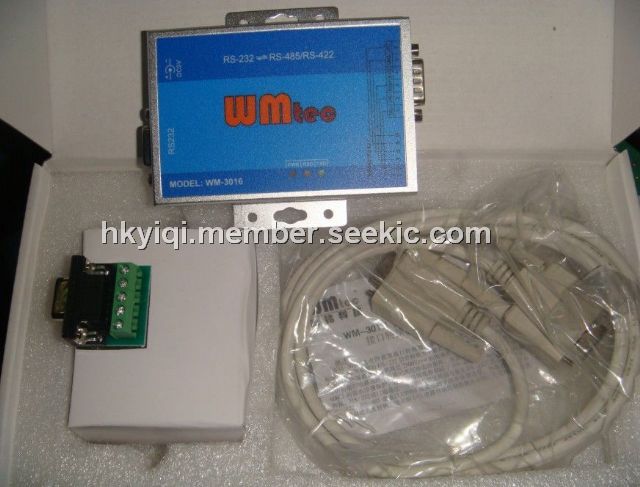

The features of WM-3016 can be summarized as (1)WM-3016 optical isolation interface converter (compatible with RS-232C, RS-422, RS-485 standard); (2)the ability to single-ended RS-232 signals into balanced differential RS-422 or RS-485 signals, built-inthe optical isolator provides an isolation voltage of up to 2500Vms; (3)TVS transient Voltage boycott of the device, to protect the back of the circuit components are not damaged due to high-voltage transient impact, and to effectively resist lightning, 600W per line lightning surge protection; (4)minimal inter-polecapacitor to ensure the adjustment of transmission of RS-422/RS-485 interface RS-232 interface port via a DB9F connector connected to the compatible RS-232C standard interface RS-422/RS-485 side through DB9M or terminal connectorconnection. (5)converted inside with zero delay automatic transmit receive a unique I / O circuit automatically control the data flow direction; no jumper settings to achieve full-duplex (RS-422) / half duplex (RS-485) mode conversionplug and play with power indicator, and send and receive data indicator.

Features

WM-3016 Features: Supports full-duplex and half duplex, double-ended power supply safety isolation, signal photoelectric separated (2.5KVms/500VDC) per line 600W shock protection and boycott site interference with light.
