Product Summary

The AD5300BRM is a single, 8-bit buffered voltage output DAC that operates from a single 2.7 V to 5.5 V supply, consuming 115 μA at 3 V. Its on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The AD5300BRM uses a versatile 3-wire serial interface that operates at clock rates up to 30MHz and is compatible with standard SPI, QSPI, MICROWIRE, and DSP interface standards. The applications of the AD5300BRM include Portable Battery-Powered Instruments, Digital Gain and Offset Adjustment, Programmable Voltage and Current Sources and Programmable Attenuators.

Parametrics

AD5300BRM absolute maximum ratings: (1)VDD to GND: –0.3 V to +7 V; (2)Digital Input Voltage to GND: –0.3 V to VDD + 0.3 V; (3)VOUT to GND: –0.3 V to VDD + 0.3 V; (4)Operating Temperature Range: –40℃ to +105℃; (5)Storage Temperature Range: –65℃ to +150℃; (6)Junction Temperature (TJ max): 150℃; (7)Power Dissipation: (TJ max–TA)/θJA; (8)θJA Thermal Impedance: 240℃/W; (9)Lead Temperature, Soldering, Vapor Phase (60 sec): 215℃; Infrared (15 sec): 220℃.

Features

AD5300BRM features: (1)Single 8-Bit DAC; (2)6-Lead SOT-23 and 8-Lead MSOP Packages; (3)Micropower Operation: 140 μA @ 5 V; (4)Power-Down to 200 nA @ 5 V, 50 nA @ 3 V; (5)2.7 V to 5.5 V Power Supply; (6)Guaranteed Monotonic by Design; (7)Reference Derived from Power Supply; (8)Power-On Reset to 0 V; (9)3 Power-Down Functions; (10)Low Power Serial Interface with Schmitt-Triggered Inputs; (11)On-Chip Output Buffer Amplifier, Rail-to-Rail Operation; (12)SYNC Interrupt Facility.

Diagrams

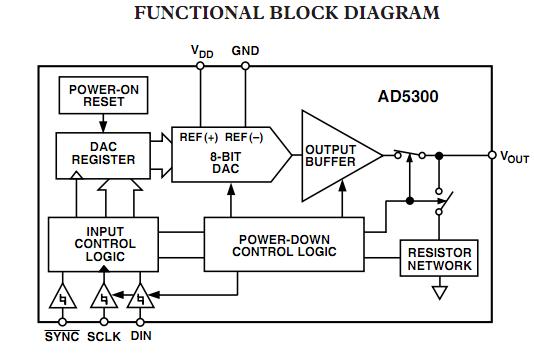

AD5300BRM functional block diagram
