Product Summary
The ADS7828E is a single-supply, low-power, 12-bit data acquisition device that features a serial I2C interface and an 8-channel multiplexer. The Analog-to-Digital (A/D) converter features a sample-and-hold amplifier and internal, asynchronous clock. The combination of an I2C serial, 2-wire interface and micropower consumption makes the ADS7828E ideal for applications requiring the A/D converter to be close to the input source in remote locations and for applications requiring isolation. The ADS7828 is available in a TSSOP-16 package. The applications of the ADS7828E include voltage-supply monitoring, isolated data acquisition, transducer interface, battery-operated systems and remote data acquisition.
Parametrics
ADS7828E absolute maximum ratings: (1)+VDD to GND: –0.3V to +6V; (2)Digital Input Voltage to GND:–0.3V to +VDD + 0.3V; (3)Operating Temperature Range:–40 to +105℃; (4)Storage Temperature Range: –65 to +150℃; (5)Junction Temperature (TJ max): +150℃; (6)Power Dissipation: (TJ max – TA)/θJA; (7)θJA Thermal Impedance: 240℃/W; (8)Lead Temperature, Soldering, Vapor Phase (60s): +215℃; Infrared (15s): +220℃.
Features
ADS7828E features: (1)8-channel multiplexer; (2)50kHz Sampling rate; (3)no missing codes; (4)2.7V to 5V operation; (5)internal 2.5V reference; (6)I2C interface supports: Standard, Fast, and High-Speed Modes; (7)TSSOP-16 package.

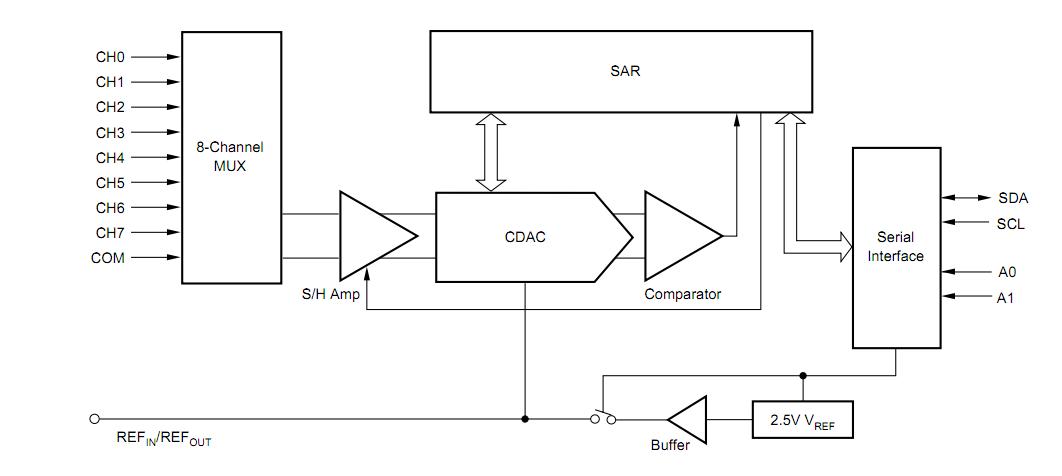

Diagrams
