Product Summary

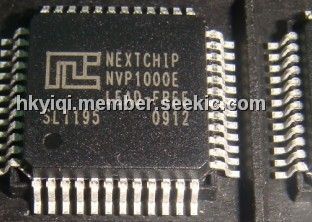

The NVP1000E is a Dual Channel Video Decoder. It delivers high quality images. The NVP1000E accepts separate 2 CVBS inputs from Camera, TV or VCR and so on. It digitizes and decodes NTSC/PAL video formats into digital components video which represents 8-bit CCIR656 4:2:2 format with 54MHz multiplexed.

Features

NVP1000E features: (1)Dual Channel Video Decoder; (2)Input: 2 CVBS; (3)Output: CCIR656 4:2:2 format with 54MHz; (4)On Chip Analog CLAMP/AGC and Anti-aliasing Filter; (5)Accepts NTSC-M/J/4.43, PAL-M/N/B/D/G/H/I/60 With Auto Detection; (6)High-performance 3H/5H 2D adaptive comb filter; (7)Robust Sync detection for weak and non-standard signal; (8)Programmable brightness, contrast, saturation and hue; (9)CTI (Chrominance Transient Improvement); (10)Programmable peaking filter for Luminance; (11)Color compensation for PAL; (12)IF compensation filter; (13)Robust No-video detection; (14)I2C interface; (15)3.3V operation; (16)48MQFP.

Diagrams

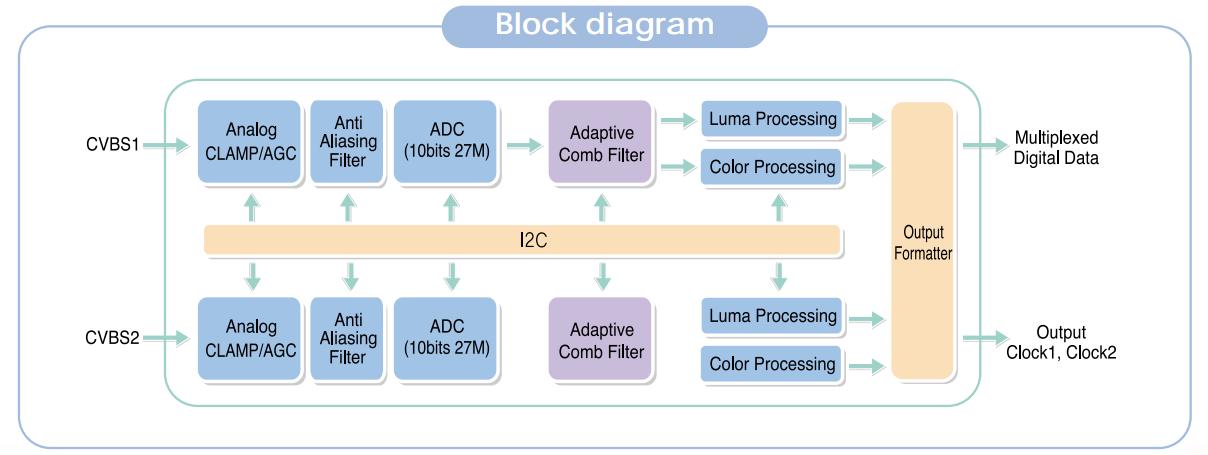

NVP1000E block diagram
